Hydraulic AC Motor

AC MOTOR Continuous Type Motor

Powerful / Low noise / Whole quantity inspection Models that emphasize performance

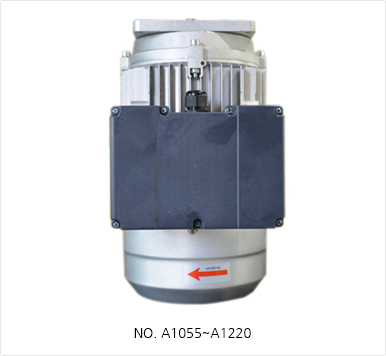

NO. A1055-A1220

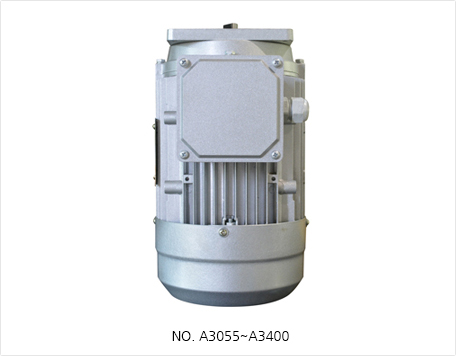

No. A3055-A3400

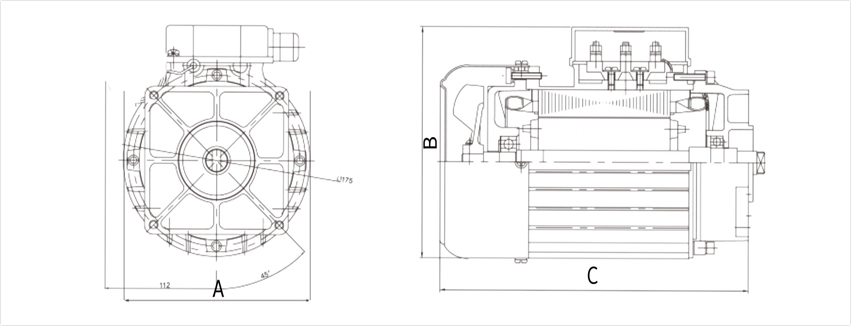

AC MOTOR SPECIFICATION

> SINGLE PHASE

Code Power(Kw) A(mm) B(mm) C(mm)

A1050 0.5 170 210 250

A1075 0.75 170 210 250

A1150 1.5 170 230 310

A1220 2.2 170 230 310

> THREE PHASE

Code Power(Kw) A(mm) B(mm) C(mm)

A3050 0.5 155 195 255

A3075 0.75 155 195 255

A3150 1.5 170 220 295

A3220 2.2 170 220 295

A3400 4.0 215 270 350

HYDRAULIC AC MOTOR

> SINGLE PHASE Continuous Type Motor

Code	Power(Kw)	RPM	Voltage	Frequency	Pole	Insulation Class	Protection	Rotation
A1050	0.5	1650	110V-220V	50Hz/60Hz	4	F	IP54	C.W
A1075	0.75	1650	110V-220V	50Hz/60Hz	4	F	IP54	C.W
A1150	1.5	1650	110V-220V	50Hz/60Hz	4	F	IP54	C.W
A1220	2.2	1650	110V-220V	50Hz/60Hz	4	F	IP54	C.W

> THREE PHASE Continuous Type Motor

Code	Power(Kw)	RPM	Voltage	Frequency	Pole	Insulation Class	Protection	Rotation
A3050	0.5	1650	110V-220V	50Hz/60Hz	4	F	IP54	C.W
A3075	0.75	1650	110V-220V	50Hz/60Hz	4	F	IP54	C.W
A3150	1.5	1650	110V-220V	50Hz/60Hz	4	F	IP54	C.W
A3220	2.2	1650	110V-220V	50Hz/60Hz	4	F	IP54	C.W
A3400	4.0	1650	110V-220V	50Hz/60Hz	4	F	IP54	C.W
