Hydraulic AC Unit

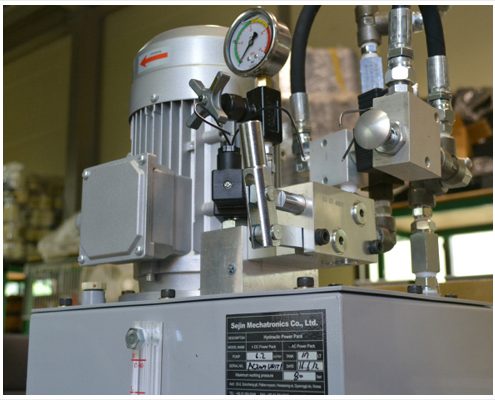

CB4-5 Type – Unit

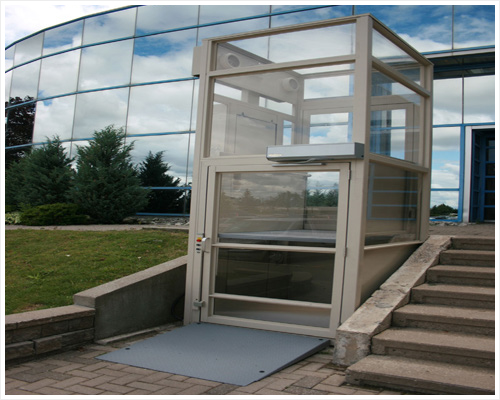

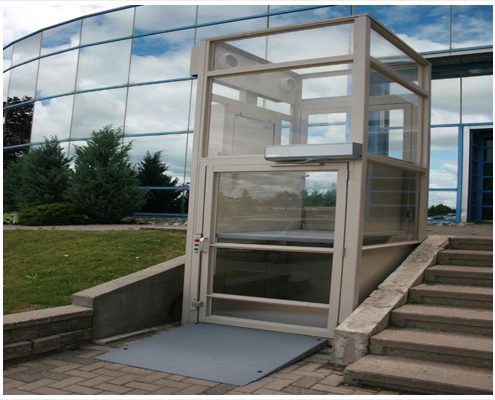

Sophisticated single acting cylinders lift 1
(Vertical Type)
Product Name | Sophisticated single acting cylinders lift 1(Vertical Type) |
Center Block | CB4 |
Motor | A3220(3Phase, 2.2Kw) |
Gear Pump | SU1063(6.3cc/rev) |
Block | B21(Including Rlief, Check and Nor Close Valve) |
Working Pressure | 150 Bar |
Max Pressure | 180 Bar |
Tank&Reservoir | UT101(Unit Type 17L) |
Valve | SV1(Nor Close Valve) 1EA |
Accessory | Sophisticated Type set3 / COA5 1EA(AC220V RAC) |
Mounting | Vertical |
