Hydraulic Oil Tank

Hydraulic Oil Tank

Depth, Width and height measurements are measured as shown in the picture below.

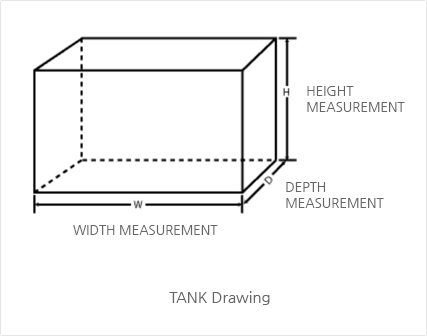

TANK Drawing

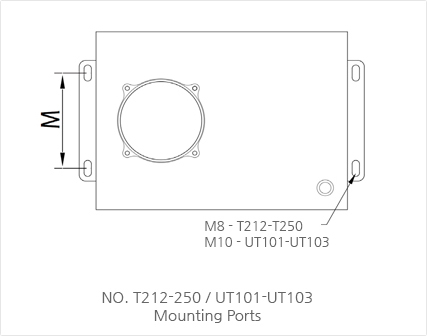

NO. T212-250 / UT101-UT103

NO. T101-T103

NO. T105-T111

NO. T203-T206

NO. T209-T250

NO. TW06-TW11

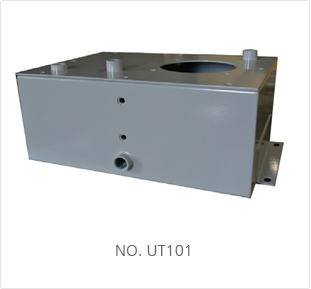

NO. UT101

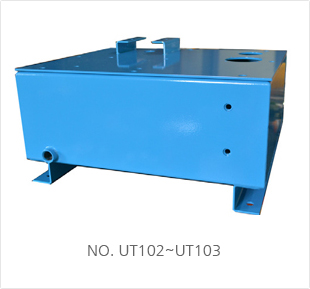

NO. UT102-UT103

Round & Square Type Tank

TS00 is made according to customer’s requirements.

> Special Type Tank

Code	Capacity Tank (I)	Horizontal	Vertical	W (mm)	D (mm)	H (mm)	Oil Plug
TS06	6	X	O	240	290	90	PF 1/2
TS09	9	O	X	265	225	160	PF 1/2
TS30	30	O	X	530	200	200	PF 1/2
TS00	Custom order

> Round Type Tank

Code	Capacity Tank (I)	Horizontal	Vertical	W (mm)	D (mm)	H (mm)	Oil Plug
T101	1	O	X	135	135	145	PF 1/2
T102	2	O	X	135	135	175	PF 1/2
T103	3	O	X	135	135	248	PF 1/2
T105	5	O	O	185	185	230	H : PF 1/2 V : PF 3/8
T108	8	O	O	530	185	320	H : PF 1/2 V : PF 3/8
T111	11	O	O	530	185	450	H : PF 1/2 V : PF 3/8

> Square Type Tank

Code	Capacity Tank (I)	Horizontal	Vertical	W (mm)	D (mm)	H (mm)	M (mm)	Oil Plug
T203	3.5	O	X	200	160	135	–	PF 1/2
T205	5	O	X	240	150	135	–	PF 1/2
T206	6.5	O	X	260	160	150	–	PF 1/2
T209	9	X	O	290	200	180	–	PF 1/2
T212	12	X	O	290	240	180	150	PF 1/2
T215	15	X	O	290	240	220	150	PF 1/2
T220	20	X	O	380	280	190	150	PF 1/2
T225	25	X	O	380	280	240	150	PF 1/2
T230	30	X	O	380	280	290	150	PF 1/2
T250	50	X	O	430	350	340	225	PF 3/4
TW06	6.5	O	X	230	120	230	–	PF 1/2
TW08	8.5	O	X	250	130	270	–	PF 1/2
TW11	11	O	X	280	140	340	–	PF 3/4

> Unit Type Tank

Code	Capacity Tank (I)	Horizontal	Vertical	W (mm)	D (mm)	H (mm)	M (mm)	Oil Plug
UT101	17L	O	X	380	280	160	150	PF 1/2
UT102	30L	O	X	450	380	180	315	AB1163
UT103	50L	O	X	555	400	235	335	AB1163
UT104	50L	O	X	630	545	220		AB1163
UT105	60L	O	X	630	545	250		AB1163
UT106	80L	O	X	630	545	300		AB1163
UT107	100L	O	X	630	545	350		AB1163
UT000	Custom order
