Hydraulic Power Pack
DC (direct current)

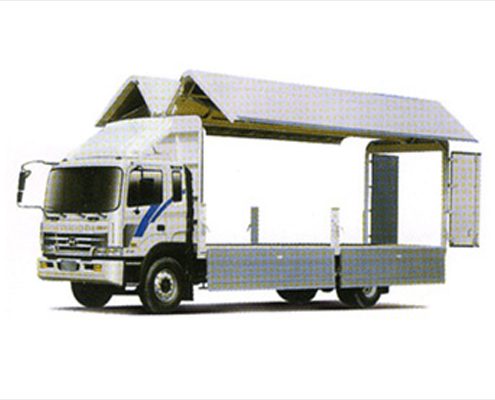

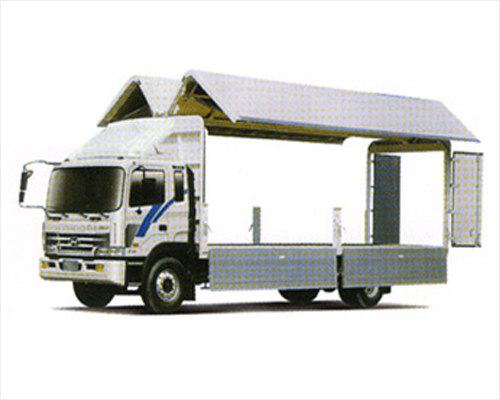

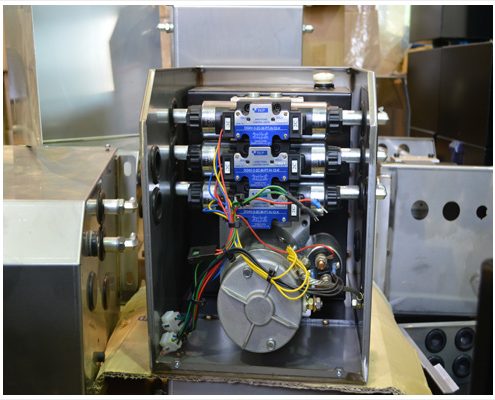

24V Wing body with 3 Double Acting Cylinders
Product Name | 24V Wing body with 3 Double Acting Cylinders |
Center Block | CB1 |
Motor | D222(DC24V 2.2Kw) |
Gear Pump | S1023(2.3cc/rev) |
Block | B15 |
Box | DB14(stainless) |
Working Pressure | 180 Bar |
Max Pressure | 210 Bar |
Tank&Reservoir | TW08(Square Type 8.5L) |
Valve | DVC2(4way 3position closed center)–3EA |
Accessory | – |
Mounting | Horizontal |
