Hydraulic Power Pack
DC (direct current)

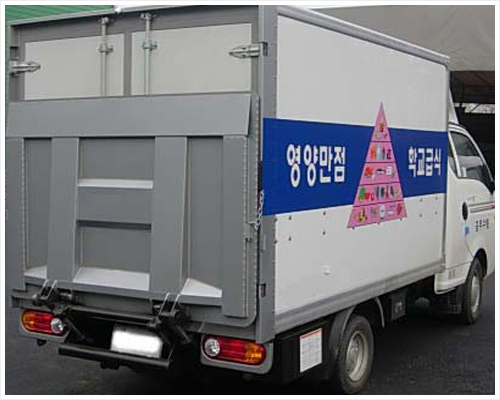

12V Tail lift with 4 Single Acting Cylinders
(Speed Type)
| Product Name | 12V Tail lift with 4 Single Acting Cylinders(Speed Type) |
| Center Block | CB1 |
| Motor | D118(DC12V 1.8Kw) |
| Gear Pump | S1016(1.6cc/rev) |
| Block | B18 |
| Box | DB10(steel) |
| Working Pressure | 180 Bar |
| Max Pressure | 210 Bar |
| Tank&Reservoir | T203(Square Type 3.5L) |

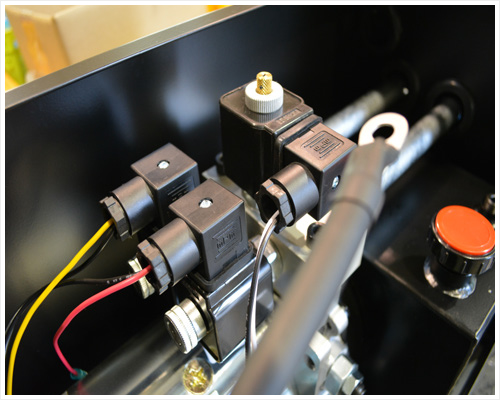

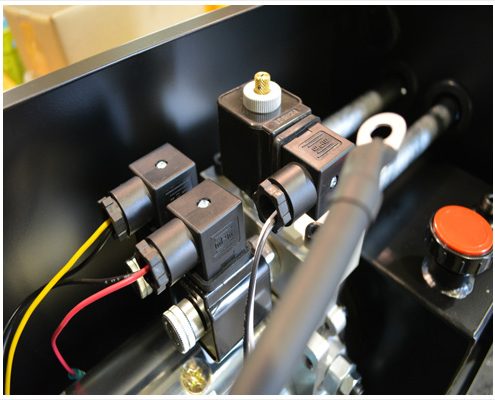

| Valve | SV1(Nor Close Valve) 1EA SV2(Double close valve,2EA) |
| Accessory | COD1 3EA(12V Coil)
SW02(4Button Controller/Korean/3.5m/Single Acting Type) |
| Mounting | Horizontal |
