Unit Pump

SAP10U – One Group Gear Pump

Powerful / Low noise / Whole quantity inspection The Model speaks with performance

maden in Korea

Made in Italy

Suction filter - Type2 (100mesh)

Code	Thread	A	D	H	Flow(I/min)
SFR1	PT1/4	26	55	95	24
SFR2	PT3/8	26	55	95	24
SFR3	PT1/2	30	65	150	65
SFR4	PT3/4	35	65	155	65
SFR5	PT1	43	86	185	108

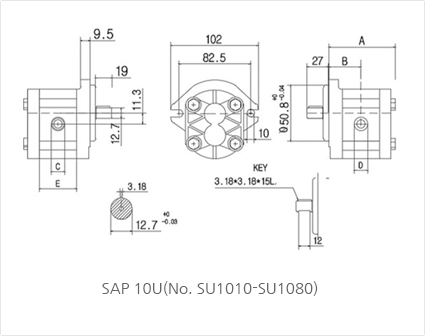

SAP 10U PUMP SPECIFICATION

SAP 10U

> SAP 10 UNIT – ONE GROUP-PUMP

Code	Country of manufacture	Displacement (cm/mm)	Min. Speed (r.p.m)	Max. Speed (r.p.m)	Max working Pressure (bar)	Max peak Pressure (bar)
SU1010	Selectable	1.0	600	4500	250	270
SU1020	Selectable	2.0	600	4500	250	270
SU1032	Selectable	3.2	600	3500	250	270
SU1040	Selectable	1.0	600	3500	240	250
SU1050	Selectable	5.0	600	3500	240	230
SU1063	Selectable	6.3	600	3500	230	230
SU1080	Selectable	8.0	600	3000	220	210
